What is a DPDT Switch and How Does It Work?
Answer: A DPDT (Double Pole Double Throw) switch is an electrical switch that controls two separate circuits simultaneously, allowing you to switch between two different configurations. It is commonly used in applications such as reversing motor direction, switching power sources, or toggling between two devices.
- DPDT Switch
- A switch that has two poles and two throws, allowing it to control two circuits at the same time.
- Double Pole
- Refers to the switch having two separate circuits or poles that can be controlled independently.
- Double Throw
- Means the switch can connect each pole to one of two different terminals or positions.
In a typical DPDT switch, there are six terminals: two common (COM), two normally open (NO), and two normally closed (NC). When the switch is in one position, the COM terminals are connected to the NC terminals; when the switch is toggled, the COM terminals connect to the NO terminals. Here is a simple comparison of DPDT switch configurations:
| Switch Type | Number of Poles | Number of Throws | Common Use Cases |
| DPDT | 2 | 2 | Motor direction control, power source switching |
| SPDT | 1 | 2 | Simple on/off switching, light control |
| DPST | 2 | 1 | Basic on/off control for two circuits |
How to Choose the Right DPDT Switch for Your Project?
Answer: Choosing the right DPDT switch depends on your project’s electrical requirements, including current rating, voltage, mounting style, and switch type. Always match the switch to the load it will control. When selecting a DPDT switch, consider the following factors:
- Current Rating: Ensure the switch can handle the maximum current your circuit will draw. For example, a 30A DPDT switch is suitable for high-power applications like motor control.
- Voltage Rating: The switch must be rated for the voltage of your system. A 12V DPDT switch is ideal for automotive or low-voltage electronics.
- Mounting Style: Choose between panel mount, PCB mount, or toggle switches based on your installation space and method.

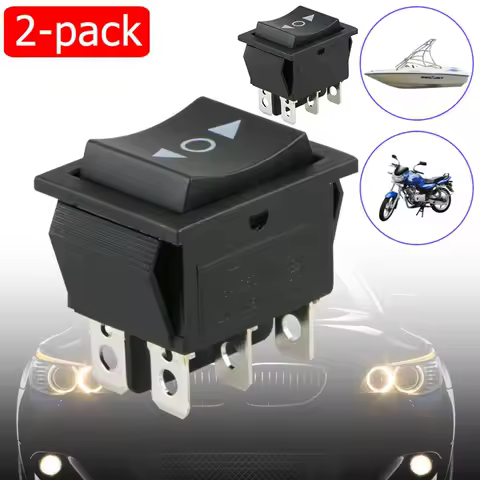

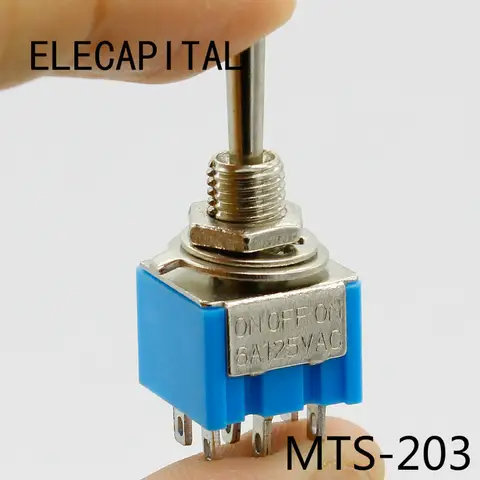

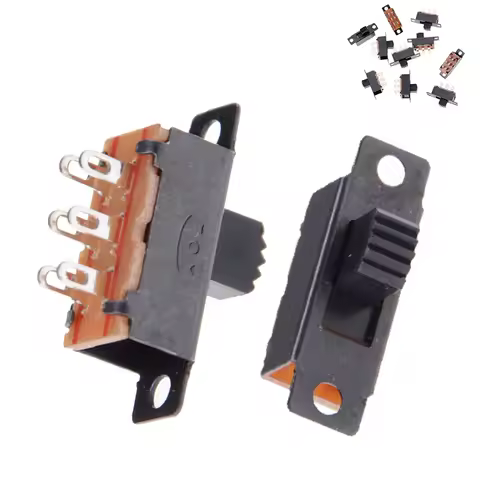

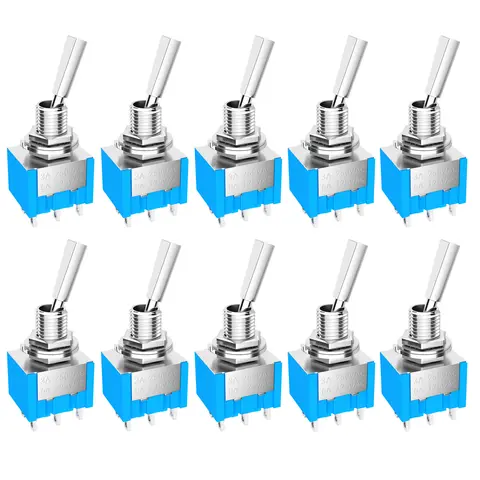

- Switch Type: Decide between a toggle, slide, or rocker DPDT switch based on your user interface needs.
For example, if you're building a 12V DC motor control system, a
30A DPDT switch with a toggle mechanism would be a good choice. It allows you to reverse the motor direction by switching the polarity of the power supply.
What Are the Common Uses of a DPDT Switch in Real Projects?
Answer: DPDT switches are widely used in electronics, automotive, and DIY projects for tasks like reversing motor direction, switching between power sources, or toggling between two devices. In a real-world application, I used a 30A DPDT switch to control a 12V DC motor in a small robot. The switch allowed me to reverse the motor direction by changing the polarity of the power supply. Here’s how I set it up:
- Connected the motor’s positive and negative leads to the two NO terminals of the DPDT switch.
- Connected the power supply’s positive and negative leads to the two COM terminals.
- When the switch was in one position, the motor ran in one direction; when toggled, it reversed direction.
This setup was simple, effective, and allowed for quick control of the motor without the need for a more complex H-bridge circuit. Other common uses include: - Switching between two power sources (e.g., battery and solar) - Controlling two separate lights or devices with a single switch - Reversing the direction of a fan or pump
User Reviews and Experiences with DPDT Switches
Answer: Users generally rate DPDT switches highly for their reliability and versatility, especially in DIY and electronics projects. However, some users report issues with poor contact quality or incorrect current ratings. One user shared their experience with a 30A DPDT switch used in a 12V motor control system. They noted that the switch performed well under load and was easy to install. However, they also mentioned that the switch’s contacts showed signs of wear after several months of continuous use. Another user used a
4 DPDT switch in a custom audio setup to switch between different speaker configurations. They praised the switch’s build quality and durability but noted that the labeling on the terminals was unclear, which made wiring more challenging. Overall, users recommend checking the current and voltage ratings before purchasing and ensuring the switch is compatible with your project’s requirements.
Other Related Switch Types and Uses
In addition to the DPDT switch, there are several other switch types that serve different purposes. For example, a
3 DPDT switch is a variation that allows for three different switching configurations, making it suitable for more complex control systems. A
DPDT key switch is often used in security or access control systems, where a key is required to toggle the switch. If you're working with higher current applications, a
30A DPDT switch is a good choice, while a
4 DPDT switch can control four separate circuits simultaneously. For low-voltage applications, a
DPDT switch 12V is commonly used in automotive or robotics projects. Other related terms include
DPST switches,
DP4T switch, and

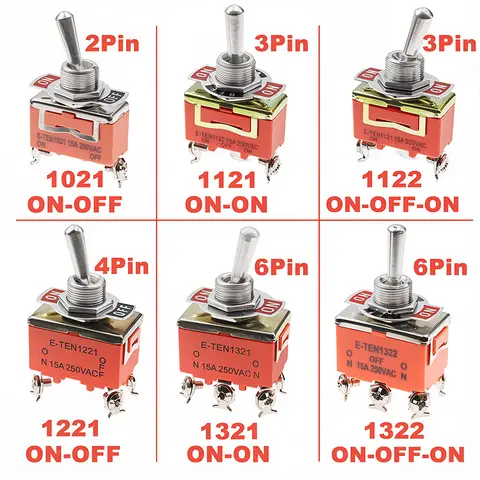

DPDT on on switch, each with its own unique configuration and use case. Understanding the differences between these switch types can help you choose the right one for your project.
